MARIETTA, GA – 02/2012
One Tough Little String Pot

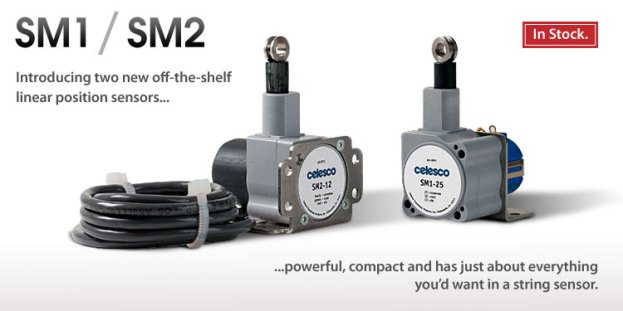

Introducing two new miniature string sensors. The SM1 (w/bare solder terminals) and the SM2 (w/40 inches of electrical cable) are in stock, economically priced and designed to fit into really tight spaces are just a few features that make these sensors the perfect choice for the OEM and single piece user alike.

Every sensor is built with a rugged polycarbonate body designed to withstand common application abuses from moderate impacts to harsh chemicals. Additionally our "free-release" tolerant design helps guard against cable failure up to accidental free-release. The rubber snubber at the base of the eyelet helps cushion any accidental free release up to a distance of 15 inches.

Output Signal
The heart of these string sensors is a high-cycle 10K ohm conductive plastic potentiometer that delivers a smooth, precise voltage divider output signal proportional to the travel of the spring-loaded measuring cable.

Simply connect a stable, regulated DC power source and you're good to go...

Both SM1 and SM2 come in four different stroke ranges: from 0-2.5 inches (64mm) to 0-25 inches (635mm) full stroke. Each sensor is constructed with a durable .014-inch dia. nylon coated stainless steel measuring cable and a stainless steel eyelet that is used to attach it.

Handy Mounting Bracket
Both these sensors are ready to mount in just about any direction. Each sensor comes with a handy mounting bracket that allows you to mount the sensor in several different directions.

Simply remove the mounting bracket screws, rotate sensor into desired position, re-attach and your done.

Pretty simple.

Got an OEM Application?
With an excellent track record providing custom sensors to the OEM market, Celesco offers the SM1 as the perfect economical solution to meet customer specific demands.

Celesco can quickly design, build and manufacture an affordably priced customized, SM1 to meet just about any customer’s needs. Custom solutions can be brought to fruition typically in days rather than weeks or months.
